Light Diffusing Polycarbonate Material (LiteGuide series)

VULCAN LiteGuide Polycarbonate Material

VULCAN PLASTICS

POLYCARBONATE LiteGuide MATERIAL

Base Material100% Virgin Covestro UV Stabiized resin
UV ProtectionClariant UV and Light Stabilizers Co-Extruded
LiteGuide Properties
Complete Light Dispersion and Diffusion
ColorIce
ProfilesROMA, GRECA, TRIMDEK, MINI, SOLID Flat, SOLID Embossed
Warranty10 Year Limited Warranty
Thickness0.6mm~2.0mm
Width670mm~2100mm
LengthCustomizable - Cut to Length
Material Properties
VULCAN LiteGuide completely diffuse and disperse lighting while still maintaining high visible light transmission.  The result is soft but consistent and well dispersed lighting within the structure, which is also well suited for signs and billboards.
Base Material
  • 100% Virgin UV included raw material ensures that your sheets can withstand harmful UV rays for at least one year.
UV Protection
  • Co-Extrusion ensures evenly spread, evenly thick base material and UV coating.
  • Clariant UV and Light stabilizer co-extruded coating as used on lenses, glasses, and sunglasses. 99.5% of harmful UV wavelengths between 290nm~400nm are blocked.
  • This layer of coating is crucial to proctecting the sheet itself, and what is underneath.
LiteGuide Technology
  • LiteGuide completely diffuse and disperse lighting while still maintaining high visible light transmission.  Well suited for environments requiring soft but consistent interior lighting, and is also suitable for Signs and Billboards, providing good aesthetics.
Light Transmission Rate:
  • For projects seeking completely dispersed and indirect light projection.
    • LiteGuide VIS: 88%
Profile Description

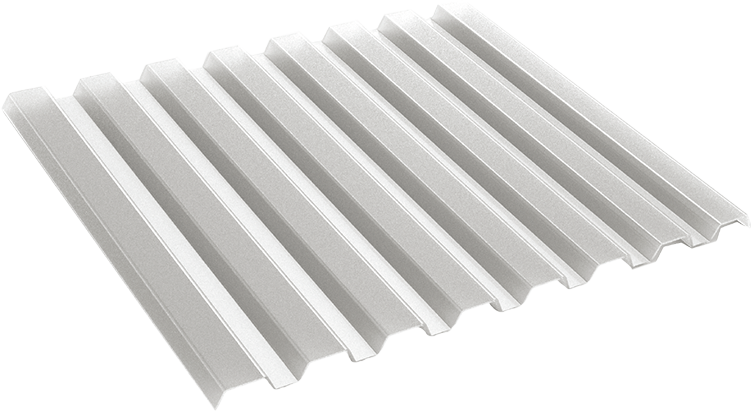

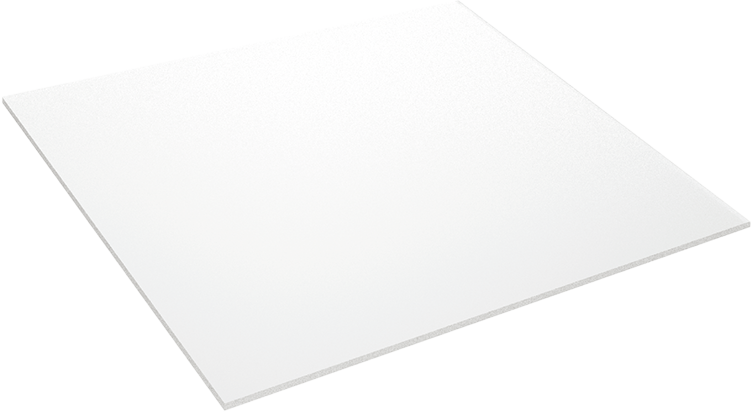

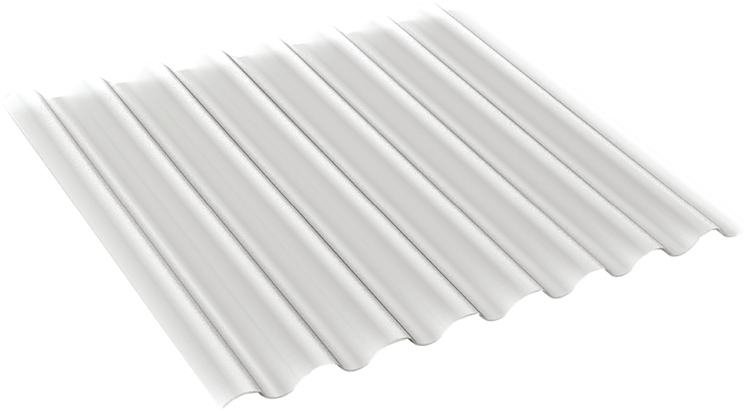

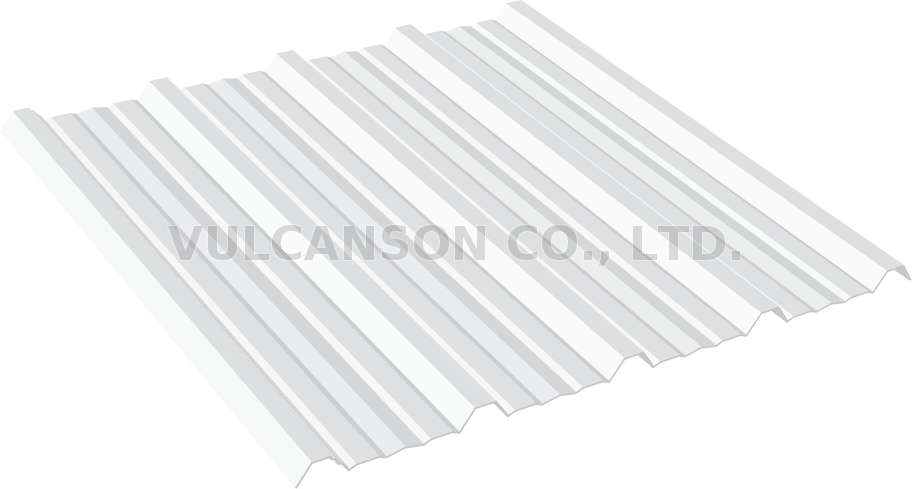

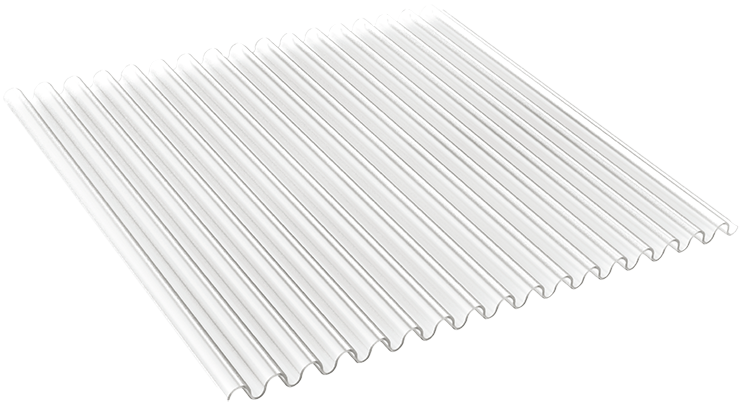

VULCAN Polycarbonate Sheets comes in 4 different Corrugated Profiles - ROMA, TRIMDEK, GRECA, MINI and 2 different Solid Profiles - SOLID FLAT and SOLID EMBOSSED/TEXTURED.


這是可以自動縮放的圖片效果

這是可以自動縮放的圖片效果這是可以自動縮放的圖片效果

這是可以自動縮放的圖片效果這是可以自動縮放的圖片效果

Quality Standards
VULCAN Polycarbonate sheets are produced with the highest of standards available in the industry.  We are the first Polycarbonate manufacturer in Asia to incorporate clean rooms for all of our extrusion lines. Our machines are enclosed in ISO Class 7 (FED STD 209E equivalent Class 10,000) clean room.

Machinery
Our machines are imported from Mitsubishi - Hitachi Zosen Japan, Omipa Italy and Breyer Germany. We use feedblocks from the industry leading EDI (Extrusion Dies Industries) and controlled by the also industry leading Dynisco.
Applicable Areas
Agricultural Greenhouse
Garden Greenhouse
Flower Greenhouse
Multi-span Greenhouse
Singe-span Greenhouse
Greenhouse roofing
Greenhouse Walls
Aquaculture Greenhouse
Polycarbonate sound barriers
Polycarbonate Highway barriers
Polycarbonate Skylight
Polycarbonate Warehouse
Polycarbonate Roofing
Warehouse Roofing
Warehouse Skylight
Industrial Skylight
Interior decoration
Car Park
Glazing
Patios
Our Services
VULCAN Polycarbonate Sheets can be made to order and cut to length as per customer request.  Any specification of either profile within their respetive production range on the Profile Table above can be produced.

Sheets can be co-extruded with Clariant UV and Light Stabilizers and are warranted for 10yrs under normal circumstances*.
*Warranty details are listed on our Installation Manual, failure to comply shall void warranty.
Company Information
VULCAN PLASTICS was established in 2007 with the goal of exporting Polycarbonate Sheets of the highest level. With steady progress, we obtained ISO 9001 Certification in the year 2008.

Starting from 1991, we have established a strong foothold in the Polycarbonate Sheet Manufacturing Industry in Taiwan. Following market trends closely and constantly in pursuit of quality and perfection, we continue to develop high-class, multi-functional Polycarbonate Sheets to satisfy customer expectations.
We are now in pursuit of a higher goal, and aim to expand our sales throughout the globe.

Through extensive testing, we have seen what the sun and excessive heat does to a poor product. Vulcan uses only first class, non-recycled material to ensure the lifespan of all our products, which in turn ensures the longlivity of your merchandise.

We are also the first Polycarbonate manufacturer in Asia to incorporate an ISO Class 7 (FED STD 209E equivalent Class 10,000) clean rooms for our extrusion lines.
FAQ
For More information, visit our
Website: https://www.polycarbonatesheets.com.tw/
E-Catalogues: Vulcan Plastics E-Catalogues
Youtube Channel: Vulcan Plastics Youtube Channel for a brief tour of our factory.
We will be more than happy to assist you in choosing the right VULCAN Polycarbonate sheet for your application.
